Detailed description of HDPE Socket Fusion Fittings:

HDPE hot-melt socket fittings include equal diameter straight, reducing straight, flange, tee, elbow and so on.

One end of HDPE hot-melt socket fittings is a socket and the other end is a spigot. The inner diameter of the socket is slightly larger than the outer diameter of the spigot. Annular heating grooves or protrusions are usually designed on the inner surface of the socket and the outer surface of the spigot of the pipe fitting. These structures help to better conduct heat during the hot melt process, so that the connection between the pipe fitting and the pipe is evenly heated, achieving a good welding effect.

The hot melt socket connection is to first heat the socket of the pipe fitting and the spigot of the pipe with a special heating tool. When the specified heating time and temperature are reached, the spigot end of the pipe is quickly inserted into the socket end of the pipe fitting to tightly combine the molten parts of the two. During the cooling process, the molten material solidifies to form a strong connection joint. This connection method utilizes the thermoplastic properties of HDPE material, melts the surface of the material by heating, and then realizes the mutual diffusion and entanglement of molecular chains under pressure, thereby achieving the purpose of sealing connection.

Features and advantages of HDPE Socket Fusion Fittings:

Firm connection: The connection joint formed by hot-melt socket has high strength, can withstand large tension and pressure, and is not prone to loosening or falling off, ensuring the stability and sealing of the pipeline system.
Good sealing: The socket-type connection method makes the fittings and pipes fit tightly, and the sealing layer formed by hot melting can effectively prevent fluid leakage. It is suitable for pipeline systems with high sealing requirements, such as drinking water transportation, gas transportation and other fields.
Easy construction: The operation is relatively simple and does not require special professional skills. Construction personnel can master it after certain training. Moreover, the speed of hot-melt socket connection is fast, which can improve construction efficiency and shorten the project cycle.
Strong adaptability: HDPE Socket Fusion Fittings have good adaptability to pipes of different calibers, and can meet the needs of various pipeline connections by adjusting the specifications of the fittings. At the same time, the HDPE material itself has good flexibility and corrosion resistance, and can adapt to different soil environments and usage conditions.
Wear resistance: The pipe fittings have high hardness and toughness. During long-term use, they can resist the erosion and wear of media such as water flow and wind and sand, and are not prone to wear and perforation, thereby ensuring the normal operation of the pipeline system.
Environmental protection and hygiene: HDPE Socket Fusion Fittings are non-toxic and odorless, and will not pollute the transported water or other fluids, and meet the relevant national environmental protection and hygiene standards. At the same time, HDPE materials can be recycled and reused, which is conducive to saving resources and protecting the environment.
Low overall cost: Due to its long service life, low maintenance cost and high construction efficiency, from the perspective of the entire life cycle of the pipeline system, the comprehensive cost of HDPE Socket Fusion Fittings is relatively low, and it has a high cost-effectiveness.

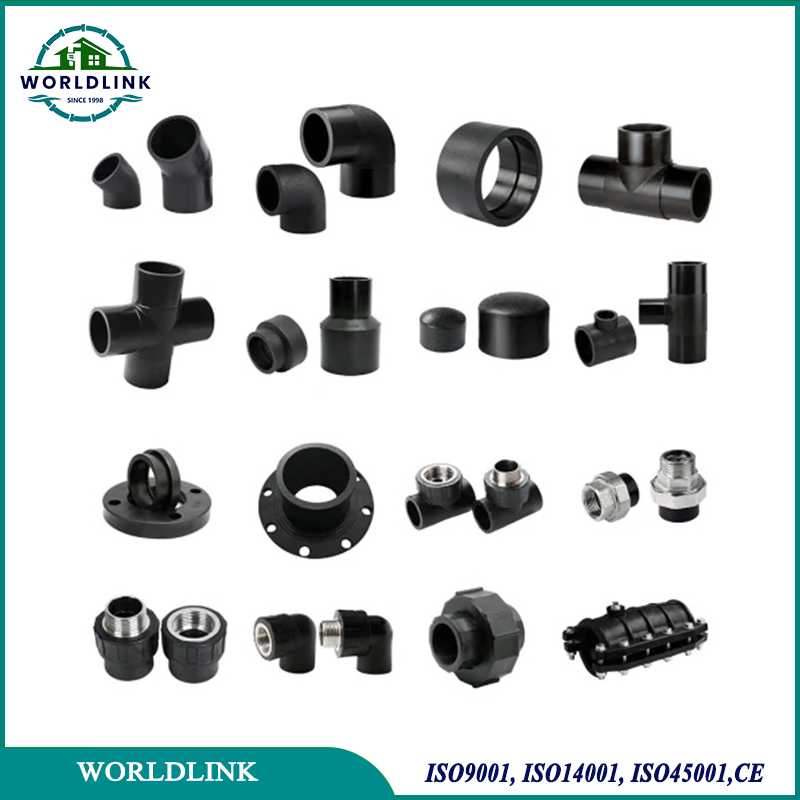

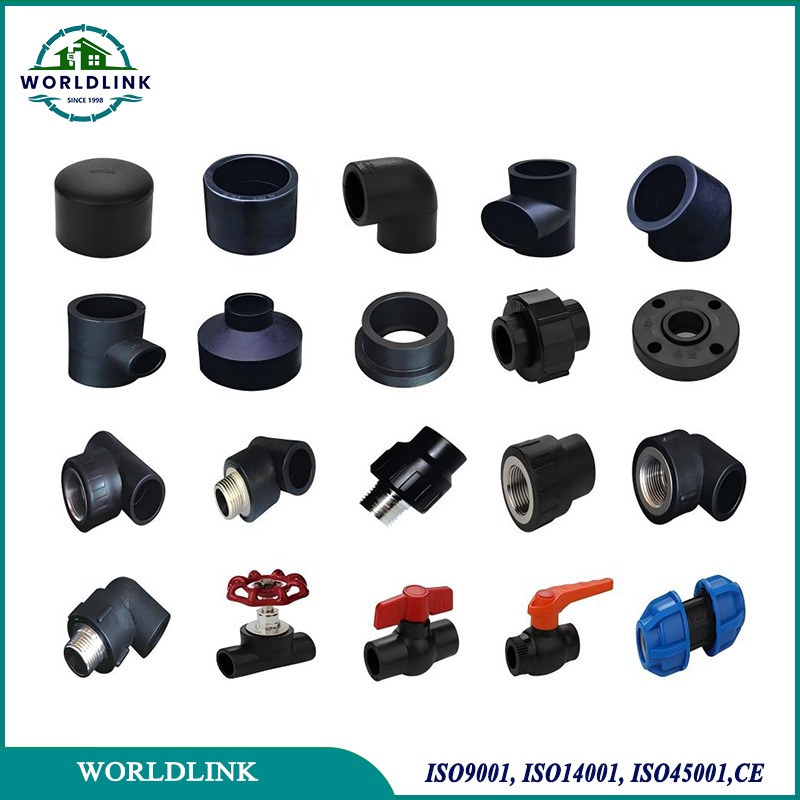

Classification of HDPE Socket Fusion Fittings:

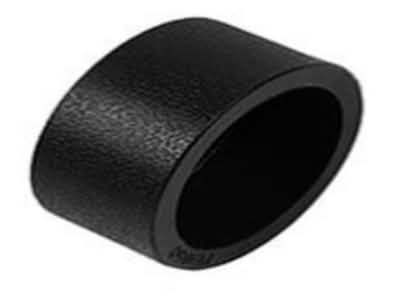

Coupler	Reducing direct	End caps	Tee	Reducing Tee	Short segment	90 degree elbow

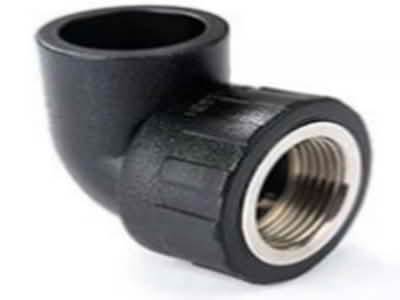

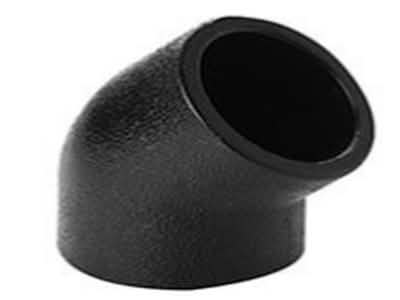

45 degree elbow	Male/Female Coupler	Male/Female Tee	Internal thread elbow	Male thread coupler	Male thread T-joint	Stop valve
