HDPE Trenchless Pipes For HDD details description:

HDPE Trenchless Pipes For HDD is a kind of engineering pipe made of high density polyethylene (HDPE) material, specially designed for trenchless construction technology. Through advanced technologies such as horizontal directional drilling (HDD), pipe pushing and pipe ramming, it can lay, repair or replace underground pipelines without large-scale ground excavation and greatly reduce the impact on urban traffic, environment and existing facilities. The pipe has excellent corrosion resistance (resistance to acid, alkali, salt and chemical media), high flexibility (adaptable to complex formation deformation) and long life (50 + years), while the inner wall is smooth and can increase the flow rate by 30%. Its lightweight characteristics (only 1/8 of the weight of the steel pipe) and environmental protection construction advantages make it an ideal choice for municipal water supply and drainage, power communication, industrial pipe network and river crossing and other scenarios, perfectly balancing engineering efficiency and ecological protection needs.

HDPE Trenchless Pipes For HDD material characteristics and advantages:

Excellent corrosion resistance: HDPE material has very high chemical stability, acid, alkali, salt and other chemical substances have good corrosion resistance, can resist the erosion of harmful substances in the soil, will not rust, rot or be corroded, can ensure the pipeline in the underground long-term stable operation, long service life, especially suitable for transporting corrosive media or in the corrosive soil environment.
Good flexibility: HDPE Trenchless Pipes For HDD has excellent flexibility and creep resistance, can adapt to a certain degree of ground settlement and soil deformation, and is not easy to break due to uneven ground settlement. This feature enables it to maintain good working condition under complex geological conditions, such as soft soil, sandy soil or earthquake prone areas, reducing the cost of pipeline maintenance and repair.
Smooth inner wall, small water resistance: The inner wall of the HDPE pipe is very smooth, the roughness coefficient is low, and the resistance of the water flow is small. This helps to improve the efficiency of fluid delivery, reduce energy consumption, and under the same pipe diameter and pressure conditions, its water transfer capacity is higher than that of traditional metal pipes, which can save pumping costs, but also reduce the deposition of impurities in the water in the pipeline, reducing the risk of pipeline blockage.
Light weight and easy construction: The density of HDPE material is small, making HDPE Trenchless Pipes For HDD light weight and easy to handle and install. Compared with traditional metal pipes, there is no need to use large lifting equipment in the construction process, which can reduce the difficulty and cost of construction and improve the construction efficiency. Moreover, the connection method is simple, such as hot melt connection, electric melt connection, etc., easy to operate, and can quickly complete the connection of the pipeline.
Good environmental performance: HDPE material is a non-toxic, tasteless environmental protection material, will not cause pollution to soil and groundwater. At the same time, the HDPE Trenchless Pipes For HDD uses trenchless construction technology, which has little damage to the surrounding environment, can minimize the impact on the ecological environment, protect the natural landscape and urban infrastructure, reduce dust and noise pollution during the construction process, and meet the requirements of modern environmental protection.
Long service life: Under normal conditions of use, the service life of HDPE Trenchless Pipes For HDD can reach more than 50 years. Its corrosion resistance, aging resistance and good mechanical properties make it able to withstand long-term internal pressure and external loads, reduce the frequency of pipeline replacement, reduce the cost of the whole life cycle, and have a high cost performance.
Recyclability: HDPE materials can be recycled and reused, and discarded HDPE Trenchless Pipes For HDDs can be made into other plastic products after treatment, which is conducive to saving resources and protecting the environment, and is in line with the concept of sustainable development.
Good sealing:HDPE Trenchless Pipes For HDD adopts hot melt connection or electric melt connection, which can form a reliable sealed interface and effectively prevent pipeline leakage. Good sealing is essential for conveying liquid or gas media, which can avoid resource waste, environmental pollution and safety accidents caused by leakage.

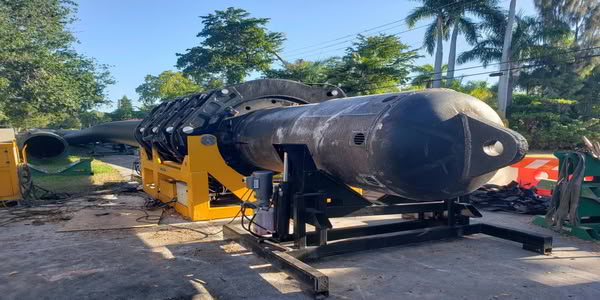

Horizontal directional drilling method

1.Construction process: First set up the launch pit and receiving pit on the ground, and then use the horizontal directional drill from the launch pit, according to the pre-designed track to drill the guide hole, after the completion of the guide hole, the drill bit is replaced by a reamer, the aperture is expanded to the design size several times, and finally pull the HDPE pipe into the expanded hole to complete the pipeline laying.
2.Advantages: small interference to the ground, can cross rivers, railways, highways and other obstacles without damaging roads, buildings, etc. High construction precision, can accurately control the laying track of the pipeline; The construction speed is fast and the efficiency is high.
3.Application scenario: Suitable for long distance and large diameter HDPE pipe laying, often used in urban water supply, drainage, gas, power and other pipeline projects, especially suitable for construction in densely populated areas, busy traffic areas and environmentally sensitive areas.

Pipe jacking

1.Construction process: The jacking equipment is installed in the working pit, the HDPE pipe is pushed from the top of the working pit into the pre-excavated pipeline track, and the earth is excavated in the pipe, so that the pipe is gradually advanced until it reaches the receiving pit.
2.Advantages: It can effectively control the axis deviation of the pipeline and ensure the accuracy of the pipeline laying; The disturbance to the surrounding soil is small, which can reduce the risk of ground settlement. Suitable for all kinds of soil conditions, including soft soil, sandy soil, clay and so on.
3.Application scenario: It is often used in urban underground pipeline projects, such as the construction of sewage pipes, rainwater pipes, integrated pipe corridors, etc., especially for the situation where the pipeline is buried with large depth and passes through more obstacles.

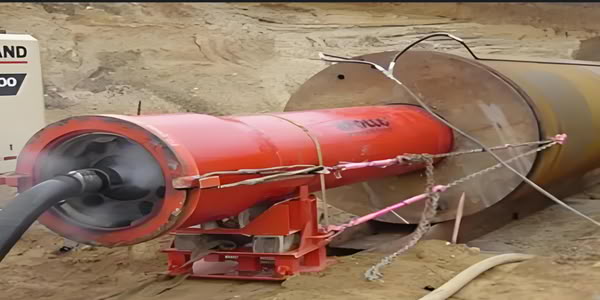

Tamping method

1.Construction process: The HDPE pipe is rammed into the stratum along the designed pipeline track by the impact force generated by the ramming hammer. During the process of ramming, the soil in the pipe is squeezed or discharged to form a pipeline space.
2.Advantages: simple construction equipment, easy to operate; The construction speed is fast, and the pipeline laying can be completed in a short time; It has strong adaptability to strata and can be used in a variety of soil conditions.
3.Application scenario: Suitable for short-distance and small-caliber HDPE pipe laying, often used for branch pipe laying under urban roads, power communication pipeline laying, etc., especially suitable for construction in narrow construction sites or areas not suitable for large-scale excavation.

Horizontal directional drilling method	Pipe jacking	Tamping method
